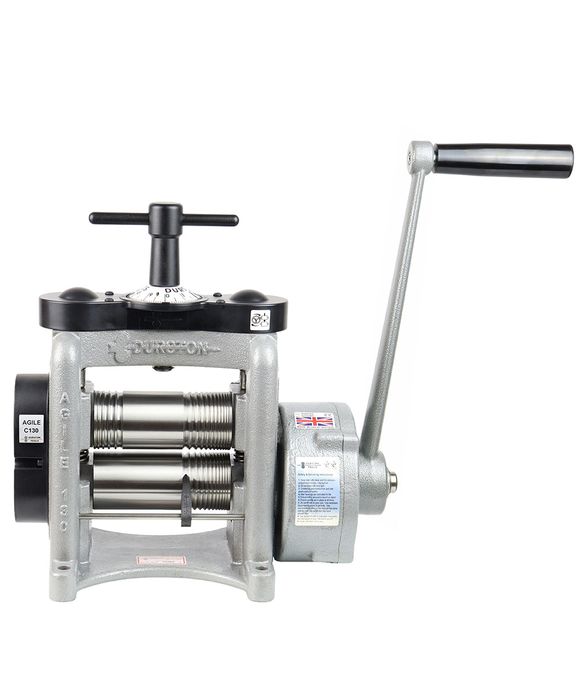

Rolling Mill - Durston Agile C130

Stock Code:
16-443-000
$3,081.80 ex gst

Stock Locations

Description



The all new Agile 130 is a special addition to the range of Durston Rolling Mills, coming from the same stable as the DRM C130RE. It's lighter - by having thinner frames - but where the mill really needs its strength it's fully designed to support the load without any compromise on quality.

A traditional T-bar replaces the hand-wheel and you'll find 5 half-rounds as part of the main roller. There are 11 square grooves (same as the DRM C130 but included is 5 half rounds 6, 5, 4, 3 and 2mm - and still a huge 60mm of flat area. The rolls are specially induction hardened to 65 RC. The main barrel to a depth of 6mm ensuring your rolls last a life time. The Agile 130's bearing blocks are fully supported, which is important to give the best possible rolled finish. The bearings are self-lubricating and completely maintenance-free... while the beautifully formed square grooves have been specifically designed to produce the best possible rolled finish. The heavy duty five-to-one gearbox is unrivalled in the industry and makes turning so much easier. Behind the cover, you'll find two specially formed gears to make rolling even smoother. Safety features include a protective guard around the top gears

Click here to use our Rolling Mill Selector and determine the best Rolling Mill for you

Alternatively, explore our detailed Durston Rolling Mill Comparison Chart to easily compare models and find the best rolling mill for your jewellery making needs.



Specifications

· Roll Size: 130mm x 60mm

· Sheet Capacity (Thickness): 6mm

· Width of Sheet: 60mm

· Max. Wire Capacity: 8mm

· No. of Wire Grooves: 11

· Half-Round Sizes: 2, 3, 4, 5 & 6mm

· Gear Ratio: 5:1

· Product Dimensions: 220 W x 410 L x 365 H (mm)

Product Weight: 39.7kg
