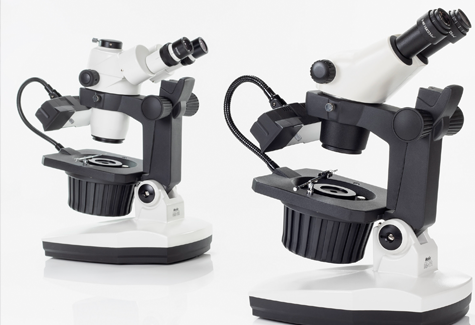

TRINOCULAR GEMMOLOGICAL MICROSCOPE 1:6.7

Stock Code:
48-GM-171T
$4,200.00 ex gst

Stock Locations

Description


Motic Microscopes

Value, innovation and friendliness. Those are the key traits Motic has tirelessly worked to embody since it was founded in 1988.

It is through this passion for providing value, boundless creativity, and unwavering dedication to the customer, that Motic has spent the last 30+ years becoming a leading manufacturer of microscopy tools with over 2500 employees and offices all over the world. Today, Motic is proud to be able to call themselves a trusted provider of affordable, quality microscopy solutions to thousands of government, industry, research, gemmologists, gemstone setters and educational institutions all over the world.

Optical system Greenough

Observation tube Trinocular head

Inclination 45º inclined

Trinocular light split Fixed 50:50

Interpupillary distance 52-75mm

Diopter adjustment On both eyepieces, +/- 5 diopter

Eyepieces Widefield WF10X/23mm

Objectives system Zoom, ratio 6.7:1

Objectives 0.75X~5X

Working distance 110mm

Stand type 360º rotary base

Diaphragm Iris diaphragm, adjustable aperture Ø41mm - Ø2mm

Head holder For Ø76mm head

Focus mechanism Coarse focusing system with tension adjustment

Focusing stroke 125mm

Incident illumination Fluorescent 7W with Gooseneck adjustable

Transmitted illumination Quartz Halogen 6V/30W with intensity control

Illumination features Darkfield illuminator

Transformer Internal

Power supply 100-240V (CE)

Accessories included Dust cover, stainless steel wire stone holder, aluminium carrying case

Dimensions LxWxH 391x236x505mm

Base 306x236mm

Column/Arm Height 268mm, 45º tilting arm

Net weight 8.2kg





Call 09 8200 006 for Availability
